Stationary Crusher
ZYS Cone Crusher
Feeding Size
35-236 (mm)
Motor power
75-375 (KW)
Capacity
27~1361 (T/H)
Stationary Crusher
Feeding Size
Motor power
Capacity

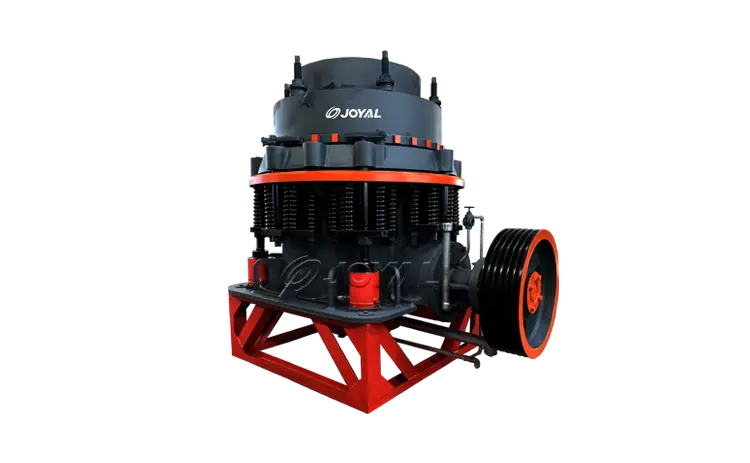

The JOYAL ZYS Cone Crusher is a high-performance model optimized from the PY Series Spring Cone Crusher
The JOYAL ZYS Cone Crusher is a high-performance model optimized from the PY Series Spring Cone Crusher. It is ideally suited for secondary and fine crushing of medium to high hardness materials, including metal ores, basalt, granite, and limestone, in industries such as mining, construction, and metallurgy.
Multiple crushing chambers and long crushing arms enable high capacity and precise product sizing.
Special material components withstand intense crushing forces for extreme durability.
Advanced dustproof sealing and a hydraulic cleaning system minimize maintenance and downtime.
Long service life of quick-wear parts and low maintenance needs ensure reduced operating costs.
Brochure
| Model | Cavity Size | Max Feeding Size(mm) | Adjusting Range of Output Size(mm) | Capacity (t/h) | Motor Power (KW) | Weight (t) | Overall Dimension (mm) |
| ZYS36B | Fine | 85 | 9~22 | 45~91 | 75 | 14.5 | 2656×1746×2410 |
| Coarse | 150 | 13-38 | 59~163 | ||||
| Extra Coarse | 152 | 25-38 | 118~163 | ||||
| ZYS36D | Fine | 35 | 3~13 | 27~90 | 15 | ||
| Medium | 65 | 5~16 | 36~100 | ||||
| Coarse | 85 | 6~19 | 59~129 | ||||
| ZYS51B | Fine | 115 | 13~31 | 109~181 | 160 | 26.5 | 2958×2354×3156 |
| Medium | 178 | 16~38 | 132~253 | ||||
| Coarse | 205 | 19~51 | 172~349 | ||||
| Extra Coarse | 220 | 25~51 | 236~358 | ||||
| ZYS51D | Fine | 54 | 3~16 | 36~163 | 27 | ||
| Medium | 76 | 6~16 | 82~163 | ||||
| Coarse | 89 | 8~25 | 109~227 | ||||
| Extra Coarse | 113 | 16~25 | 209~236 | ||||
| ZYS66B | Fine | 178 | 16~38 | 181~327 | 250 | 51 | 3941×2954×3771 |
| Medium | 205 | 22~51 | 258~417 | ||||
| Coarse | 228 | 25~64 | 299~635 | ||||
| Extra Coarse | 313 | 38~64 | 431~645 | ||||
| ZYS66D | Fine | 60 | 5~13 | 90~209 | 52 | ||
| Medium | 76 | 6~19 | 136~281 | ||||
| Coarse | 113 | 10~25 | 190~336 | ||||
| Extra Coarse | 125 | 13~25 | 253~336 | ||||
| ZYS84B | Fine | 236 | 19~38 | 381~726 | 315 | 90 | 4613×3251×4732 |
| Medium | 284 | 25~51 | 608~998 | ||||
| Coarse | 314 | 31~64 | 789~1270 | ||||
| Extra Coarse | 391 | 38~64 | 880~1361 | ||||
| ZYS84D | Fine | 89 | 5~16 | 190~408 | 92 | ||
| Medium | 113 | 10~19 | 354~508 | ||||
| Coarse | 151 | 13~25 | 454~599 | ||||
| Extra Coarse | 172 | 16~25 | 508~653 |
