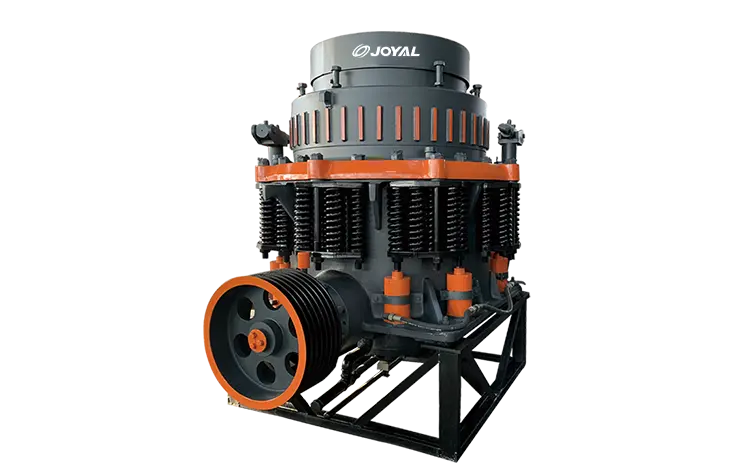

ZYC Cone Crusher
Max Feed Size
50mm - 267mm
Capacity
18-275 (T/H)
Motor Power
37 kW - 300 kW
Stationary Crusher
Max Feed Size
Capacity
Motor Power
ZYC Cone Crusher delivers superior cubic end products, ensured reliability, and easy maintenance for versatile crushing applications.
ZYC Cone Crushers are widely used in metal and non-metallic mines, cement, construction, sand, and metallurgical industries. They are suitable for processing materials such as iron ore, nonferrous metal ores, granite, limestone, quartzite, sandstone, pebbles, and more.
Employs an advanced crushing principle to produce more cubic-shaped end products with fewer flaky particles, enhancing output quality.
Features a hydraulic adjustment and clearing system to automatically discharge tramp iron. The interlocked thin-oil lubrication system ensures stable and safe operation.
The hydraulic cavity cleaning system enables quick recovery after an under-load stoppage. The mantle and concave liners can be disassembled from the top, significantly simplifying maintenance.
Capable of handling everything from coarse to fine crushing stages. Suitable for both stationary and mobile crushing plants, with multiple cavity options available to meet diverse customer requirements.
Brochure
| Standard | Chamber | Min discharge opening (mm) | Power | Capacity(t/h) | Weight(kg) | ||||||||||
| Max feedsize | Close discharge size(mm) | ||||||||||||||
| （mm） | 6 | 10 | 13 | 16 | 19 | 22 | 25 | 38 | 51 | 64 | |||||
| ZYC600 | C | 95 | 10 | 37-45 | 20 | 25 | 30 | 35 | 45 | 50 | 76 | 5300 | |||
| M | 72 | 6 | 37-45 | 18 | 20 | 25 | 30 | 35 | 40 | 45 | 60 | 5300 | |||
| ZYC1000 | C | 160 | 13 | 90-110 | 80 | 100 | 135 | 150 | 175 | 235 | 10800 | ||||
| M | 115 | 10 | 90-110 | 65 | 75 | 90 | 120 | 135 | 150 | 10800 | |||||
| F | 80 | 8 | 90-110 | 52 | 62 | 72 | 78 | 115 | 10510 | ||||||
| EF | 50 | 6 | 90-110 | 50 | 55 | 65 | 70 | 102 | 10510 | ||||||
| ZYC1200 | C | 180 | 13 | 110-132 | 115 | 135 | 150 | 180 | 200 | 260 | 15500 | ||||
| M | 130 | 10 | 110-132 | 100 | 110 | 120 | 135 | 165 | 175 | 15500 | |||||
| F | 90 | 10 | 110-132 | 80 | 105 | 110 | 140 | 15500 | |||||||
| EF | 60 | 6 | 110-132 | 60 | 74 | 105 | 110 | 130 | 15500 | ||||||
| ZYC1380 | C | 215 | 19 | 185-220 | 200 | 220 | 260 | 350 | 440 | 26300 | |||||
| M | 160 | 16 | 185-220 | 155 | 180 | 200 | 220 | 26300 | |||||||
| F | 115 | 13 | 185-220 | 150 | 190 | 210 | 230 | 26300 | |||||||
| EF | 76 | 8 | 185-220 | 122 | 148 | 185 | 200 | 26300 | |||||||
| ZYC1500 | C | 235 | 22 | 185-220 | 265 | 310 | 420 | 525 | 580 | 37750 | |||||
| M | 175 | 19 | 185-220 | 215 | 240 | 265 | 320 | 37750 | |||||||
| F | 130 | 13 | 185-220 | 180 | 210 | 235 | 255 | 275 | 37750 | ||||||
| EF | 90 | 10 | 185-220 | 148 | 178 | 200 | 220 | 37750 | |||||||
| ZYC1680 | C | 267 | 22 | 250-300 | 330 | 390 | 525 | 655 | 725 | 44300 | |||||
| M | 203 | 16 | 250-300 | 230 | 270 | 300 | 330 | 44300 | |||||||
| F | 140 | 13 | 250-300 | 185 | 225 | 265 | 340 | 44300 | |||||||
| EF | 95 | 10 | 250-300 | 180 | 220 | 260 | 335 | 44300 | |||||||
