Screen and Feeder
Sand washing & recycling machine
Feeding Size
≤10 (mm)
Capacity (t/h)
50-200
Motor Power (kw)
28.4-97
Screen and Feeder
Feeding Size
Capacity (t/h)
Motor Power (kw)

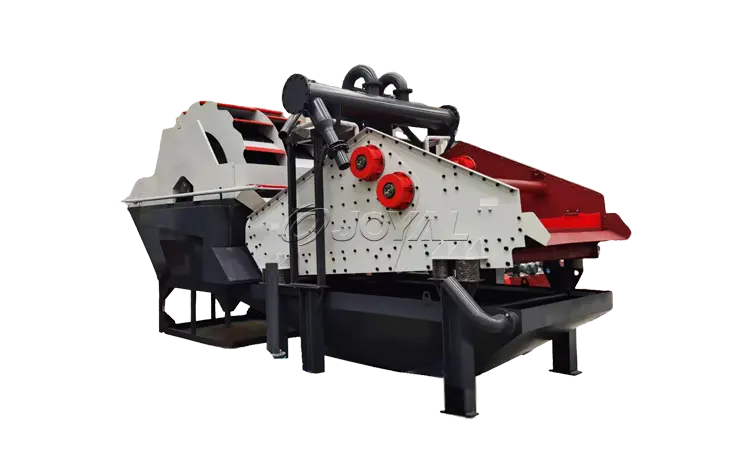

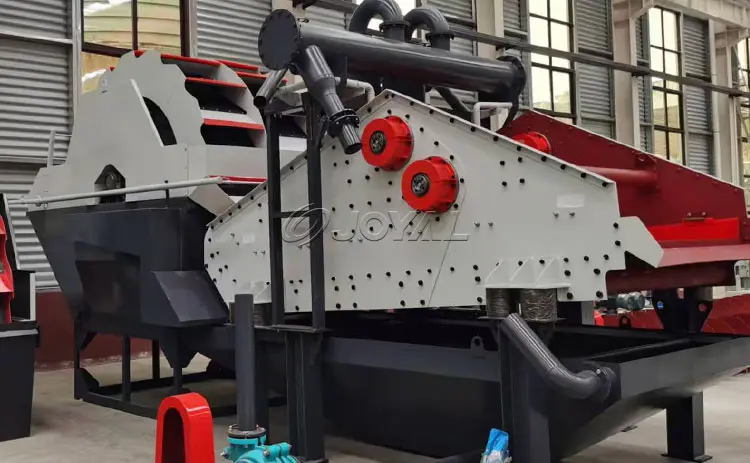

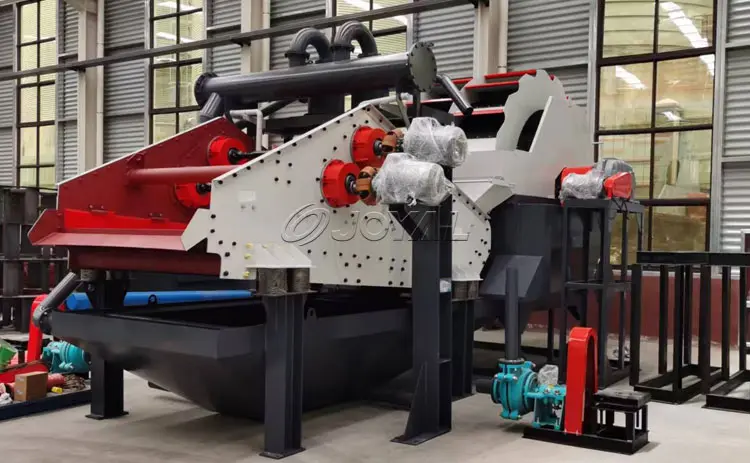

This equipment ingeniously integrates a fine sand recovery machine with a sand washer, featuring a rational structure and compact footprint
This equipment ingeniously integrates a fine sand recovery machine with a sand washer, featuring a rational structure and compact footprint. Its investment cost is lower than purchasing two separate units, while delivering cleaner material processing than traditional sand washers. It produces sand of superior quality at a competitive price.
For purer sand and higher quality.
Energy-efficient and durable for low lifetime cost.
Customizable and compact for easy installation.
Brochure
| Model | Impeller diameter (mm) | Screen area (mm) | Cyclone type | Water consumption (m³/h) | Feeding size (mm) | Capacity (t/h) | Motor power (kw) | Weight (kg) | Dimension size (mm) |
| ZY26-35-1224 | 2600 | 1200*2400 | FX350 | 80-120 | ≤10 | 50-80 | 28.4 | 4935 | 5800*5200*2750 |
| ZY26-55-1530 | 2600 | 1500*3000 | FX250*2 | 100-140 | ≤10 | 80-100 | 33.5 | 5392 | 5800*5560*2750 |
| ZY30-55-1530 | 3000 | 1500*3000 | FX250*2 | 100-140 | ≤10 | 80-100 | 39 | 7328 | 6700*5560*3100 |
| ZY30-65-1530J | 3000 | 1500*3000 | FX300*2 | 120-180 | ≤10 | 80-120 | 47 | 7500 | 6700*5560*3600 |
| ZY30-75-1836 | 3000 | 1800*3600 | FX350*2 | 160-240 | ≤10 | 100-140 | 63 | 9761 | 7331*5560*3370 |
| ZY30-120-1842 | 3000 | 1800*4200 | FX300*4 | 240-360 | ≤10 | 100-140 | 82 | 10565 | 7950*5560*3370 |
| ZY30-75-1836D | 3000 | 1800*3600 | FX350*2 | 160-240 | ≤10 | 100-140 | 59 | 9669 | 7420*5560*3670 |
| ZY30-75-1842D | 3000 | 1800*4200 | FX350*2 | 160-240 | ≤10 | 100-140 | 59 | 10615 | 8020*5560*3670 |
| ZY36-100-1836D | 3600 | 1800*3600 | FX250*4 | 200-280 | ≤10 | 100-140 | 70 | 13363 | 8120*5560*4100 |
| ZY36-100-1842D | 3600 | 1800*4200 | FX250*4 | 200-280 | ≤10 | 100-140 | 70 | 14040 | 8590*5560*4100 |
| ZY36-100-1836J | 3600 | 1800*3600 | FX250*4 | 200-280 | ≤10 | 120-160 | 74 | 13634 | 8120*5560*4100 |
| ZY36-100-1842J | 3600 | 1800*4200 | FX250*4 | 200-280 | ≤10 | 120-160 | 74 | 14180 | 8590*5560*4100 |
| ZY36-100-1848J | 3600 | 1800*4800 | FX250*4 | 200-280 | ≤10 | 120-160 | 74 | 14630 | 9190*5560*4100 |
| ZY36-100-2442J | 3600 | 2400*4200 | FX250*4 | 200-280 | ≤10 | 150-200 | 81 | 15120 | 8680*6450*4100 |
| ZY36-120-2448J | 3600 | 2400*4800 | FX300*4 | 240-360 | ≤10 | 150-200 | 97 | 15480 | 9280*6450*4100 |
