Grinding Mill

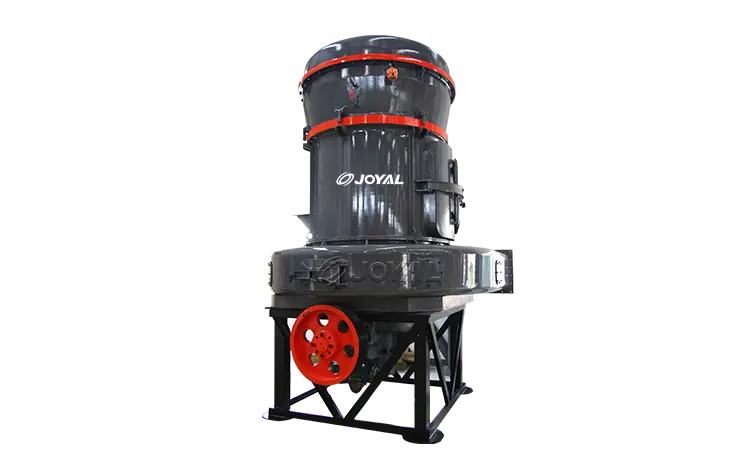

MTW Grinding Mill
Capacity
3.5 - 45 （T/H）
Input Size
≤30 (mm)
Output Size (mm/mesh)
1.6-0.045 (fineness can reach to 0.038)
Grinding Mill
Capacity
Input Size
Output Size (mm/mesh)
The MTW mill represents an enhanced version of the MTM series grinding mill, developed through years of dedicated research and practical experience
The MTW mill represents an enhanced version of the MTM series grinding mill, developed through years of dedicated research and practical experience. It incorporates a range of advanced technological innovations, including an integral bevel gear transmission system, an internal thin-film oil lubrication mechanism, and an arc-shaped air channel design.
Incorporates a high-efficiency classifier and an isolated cyclone collector to ensure precision in product fineness and superior airtightness for guaranteed end-product quality.
Features an overall bevel gear transmission design for higher drive efficiency, easier installation and adjustment, extended service life, and reduced operational costs.
Utilizes an internal thin-oil lubrication system for key bearings, eliminating the need for an external pump and simplifying maintenance.
Employs a wear-resistant volute for smooth material flow and minimal energy loss, combined with a split-design curved shovel that allows for easy replacement of worn parts.
Brochure
| Model | Ring Diameter (mm) | Roller Numbers (piece) | Main Shaft Speed (r.p.m) | Input Size (mm) | Output Size (mm/mesh) | Capacity (t/h) | Overall Dimension (L*W*H,m) | Weight (t) |
| MTW110 | 1100 | 4 | 120 | ≤30 | 1.6-0.045 (fineness can reach to 0.038) | 3.5-10 | 8425x5041x8642 | 18 |
| MTW138 | 1380 | 4 | 96 | ≤35 | 1.6-0.045 (fineness can reach to 0.038) | 6.5-18 | 10920x9470x10227 | 34 |
| MTW175 | 1750 | 5 | 75 | ≤40 | 1.6-0.045 (fineness can reach to 0.038) | 11-25 | 12182x8835x9916 | 46 |
| MTW215 | 2150 | 5 | 65 | ≤50 | 1.6-0.075 (fineness can reach to 0.038) | 30-45 | 14730x10860x10341 | 92 |
