Modular Crushers

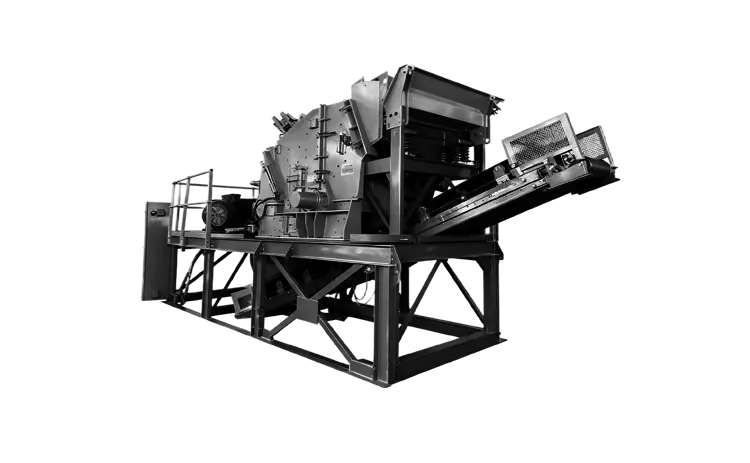

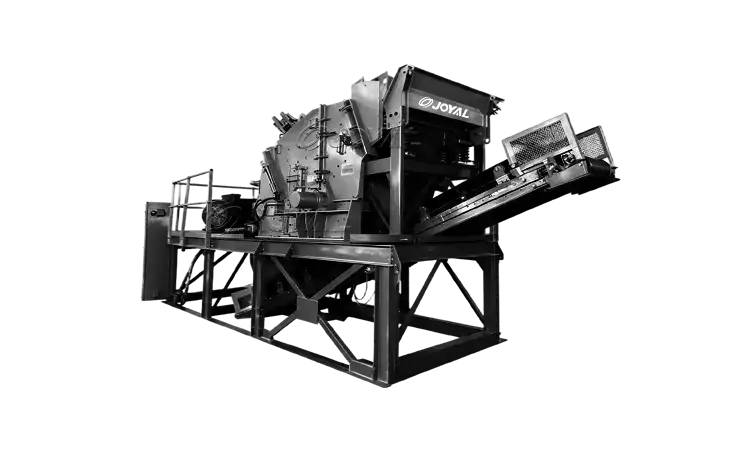

Modular Impact Crusher
Max. Feeding Size
500 (mm)
Capacity
90 - 255 (T/H)
Motor Power
75 (KW)
Modular Crushers
Max. Feeding Size
Capacity
Motor Power
The modular impact crusher integrates core components such as the main unit, drive system, and control system into independent, quickly detachable functional modules.
The modular impact crusher integrates core components such as the main unit, drive system, and control system into independent, quickly detachable functional modules. It not only inherits the traditional advantages of impact crushers—high crushing ratio and excellent particle shape—but also achieves breakthroughs in installation, transportation, maintenance, and adaptability.
Suitable for primary or secondary crushing plants
Applicable to multiple industries including quarrying, mining, recycling, and construction
Hydraulic jacks for easy adjustment
Simple operation and quick relocation
Brochure
| Parameter Category | Parameter Item | Technical Specification |
| Crusher Main Body | Feed Opening | 1500x1200 mm (Model Dependent) |
| Max. Feed Size | 1020 mm | |
| Discharge Opening Range | 150 - 300 mm | |
| Capacity | Standard Application | 700 - 950 t/h |
| Max. Throughput | Approx. 1200 t/h | |
| Drive System | Motor Power | 250 kW / 6P (Model Dependent) |
| Starting Method | VFD / Soft Starter (Optional) | |
| Feeding System | Feeder Type | Heavy-Duty Vibrating Grizzly Feeder |
| Feeder Specification | 4500x1300 mm | |
| Discharge System | Main Discharge Conveyor | Width 1400 mm, with anti-runoff device |
| Conveyor Speed | 1.6 m/s (Adjustable) | |
| Overall Dimensions | Transport Length (Approx.) | 18500 mm |
