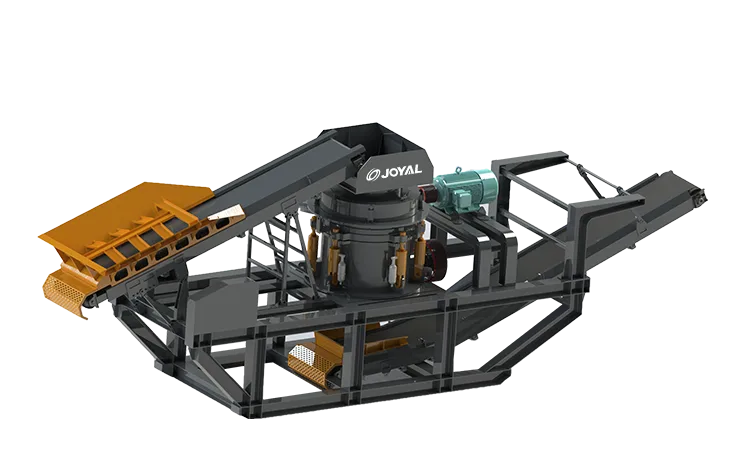

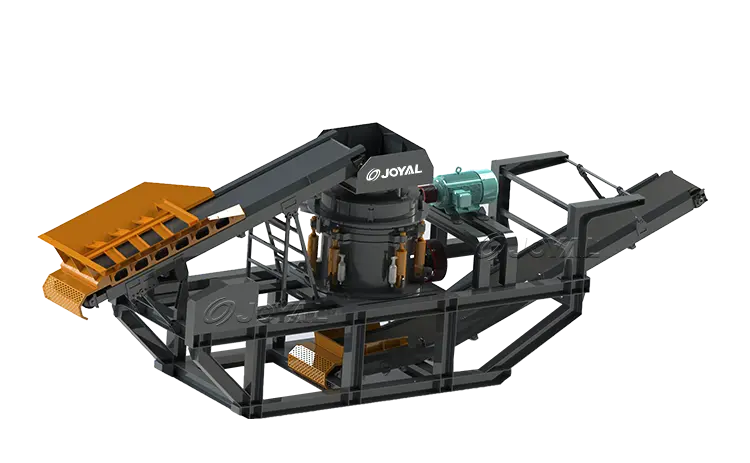

Modular cone crusher

• Features
• Product data

The modular cone crusher design concept combines standardized functional modules to shorten on-site installation time and enhance maintenance convenience. It meets the demands of modern aggregate production and mining operations for flexibility and operational efficiency.

1. Modular Structure

The equipment mainly consists of the following pre-installed and factory-tested functional modules:

• Crushing Main Unit Module: Integrates the frame, main shaft assembly, drive motor, and thin oil lubrication station.
• Feeding Module: Includes a vibrating feeder and pre-screening device.
• Electrical Control System Module: Integrates a PLC automated control cabinet and motor starting equipment.
• Technical Advantages:
  Modules are connected via standard interfaces, reducing installation time by approximately 30-50%.

2. Convenient Maintenance Design

• Side Maintenance: Routine maintenance can be performed from the side of the equipment without dismantling the upper structure, reducing maintenance complexity and operational risks.
• Hydraulic Support System: Equipped with a hydraulic system for adjusting the discharge port size and providing overload release and cavity clearing functions, protecting the main structure of the equipment and reducing downtime due to material jamming.
