Mobile Crushing Plants
Mobile Jaw Crushing Plant
Capacity (by hour)
70-300 (T/H)
Motor Power
91.5-146 (KW)
Weight
42-72 (T)
Mobile Crushing Plants
Capacity (by hour)
Motor Power
Weight

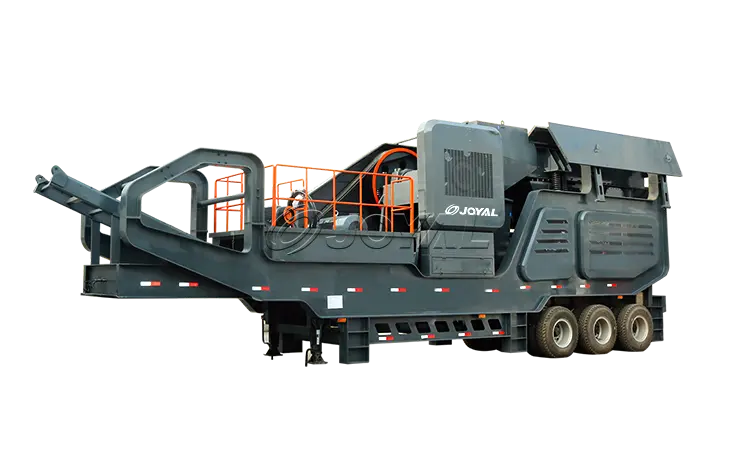

The JOYAL Mobile Jaw Crushing Plant breaks free from location constraints of crushing operations
The JOYAL Mobile Jaw Crushing Plant breaks free from location constraints of crushing operations, enabling on-site or near-site material processing to significantly reduce material transportation costs.
As a primary crushing solution, it offers flexible equipment options: PE&PEW jaw crushers and PF&PFW impact crushers (the latter delivers cubic-shaped finished products with no tension or cracks).
Brochure
| Model | Vibrating Feeder | Jaw Crusher | Belt Conveyor | Extended Belt Conveyor | Capacity (t/h) | Power (kw) | Overall DimensionL×W×H(mm) | Weight(t) |
| YG938E69 | GZD960×3800 | PE600×900 | B650×7M | Optional | 70-150 | 91.5 | 13200×2900×4700 | 42 |
| YG1142E710 | GZD1100×4200 | PE750×1060 | B800×7M | Optional | 90-200 | 134 | 15000×3100×5100 | 55 |
| YG1349E912 | GZD1300×4900 | PE900×1200 | B1000×7M | Optional | 150-300 | 146 | 17000×3300×5600 | 72 |
