Mobile Crushing Plants
Combination Mobile Crushing Plant
Capacity
40-80 t/h
Total Weight
42-58 tons
Motor Power (kw)
115-160 kW
Mobile Crushing Plants
Capacity
Total Weight
Motor Power (kw)
It offers a rapidly deployable and highly adaptable crushing solution that minimizes initial investment and accelerates production startup.

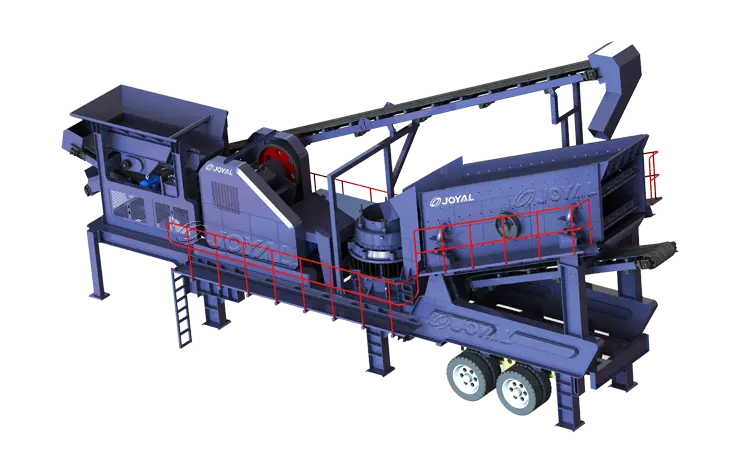

Combination Mobile Crushing Plant integrates a complete set of crushing equipment—including vibrating feeder, jaw crusher, cone or impact crusher, and vibrating screen—all consolidated within a single frame. With capacities ranging from 40 t/h to 100 t/h, it can be customized to meet specific output size and production requirements.
All equipment is mounted on one chassis for easy transport and setup, supporting tailored configurations to suit various operational needs.
Compared to stationary plants, it requires less civil work and installation time, reducing initial investment and enabling quicker production startup.
Capable of operating in remote or rugged terrain, minimizing infrastructure preparation and expanding application range.
Provides fast investment return with durable performance; optional hydraulic system or generator available upon request.
Brochure
| Model | Vibrating Feeder | Jaw Crusher | Cone Crusher /Impact Crusher | Vibrating Screen | Capacity (t/h) | Dimension (M) | Weight (T) | Power (KW) |
| Y3SY9E46 | GZD850*3000 | PE400*600 | PYB900 | 3YZS1237 | 40-50 | 15*2.5*4.5 | 42 | 115 |
| Y3SS36E57 | GZD850*3000 | PE500*700 | ZYS36B | 3YZS1548 | 60-80 | 16.5*3*4.5 | 58 | 160 |
| Y3SF1210E57 | GZD850*3000 | PE500*700 | PF1210 | 3YZS1548 | 60 | 16.5*3*4.5 | 58 | 150 |
| Y2SY9E57 | GZD850*3000 | PE500*700 | PYB900 | 2YZS1237 | 40-50 | 15*2.5*4.5 | 47 | 130 |
| Y3SF1010E46 | GZD850*3000 | PE400*600 | PF1010 | 3YZS1237 | 40-50 | 15*2.5*4.5 | 42 | 115 |
