Design a copper ore crushing production line with a processing capacity of 100-150 tons/hour. Employ a classic two-stage closed-circuit crushing process, with the core equipment being a combination of a jaw crusher and a cone crusher. This design offers advantages such as compact structure, stable operation, high production efficiency, and uniform and controllable finished product particle size, meeting the stringent requirements for feed particle size in subsequent grinding operations.

As a domestic supplier of complete mining crushing solutions and integrated equipment, JOYAL Mining can help customers realize the planning and design of the entire project and the technical transformation and upgrading of old production lines, thereby achieving greater economic benefits and profits.

Get the solution you need

Design Principles

Reliability Principle: Robust and durable equipment is selected to handle the high hardness and abrasiveness of copper ore.

Efficiency Principle: Optimized equipment configuration and process flow ensure stable system capacity that meets and exceeds design targets.

Economy Principle: Closed-loop design reduces equipment load and energy consumption, lowering production costs per ton of ore.

Environmental and Safety Principle: Dust removal, noise reduction, and safety protection measures are implemented throughout the entire production line to ensure compliance with environmental regulations and safety requirements.

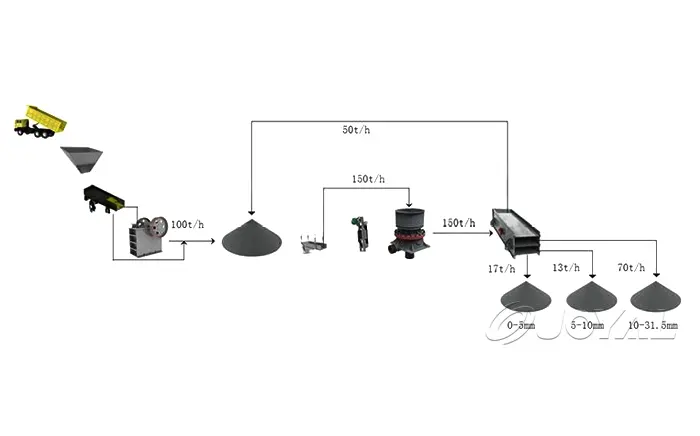

Copper Ore Crushing Process (100-150 t/h)

Crush Again & Check

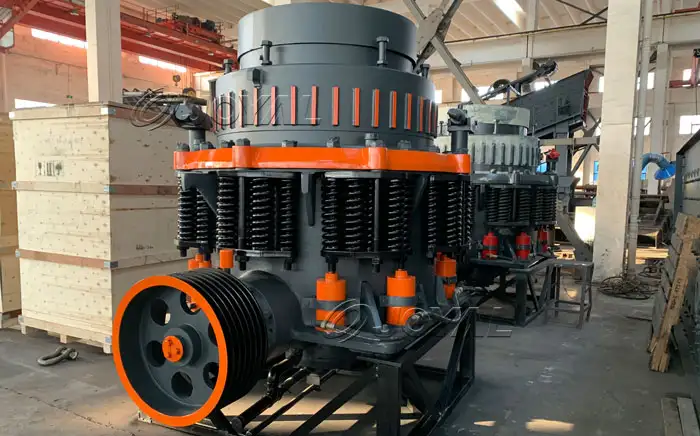

The crushed material goes to the Cone Crusher for finer crushing. Its output returns to the same screen for checking.

Feed & Screen

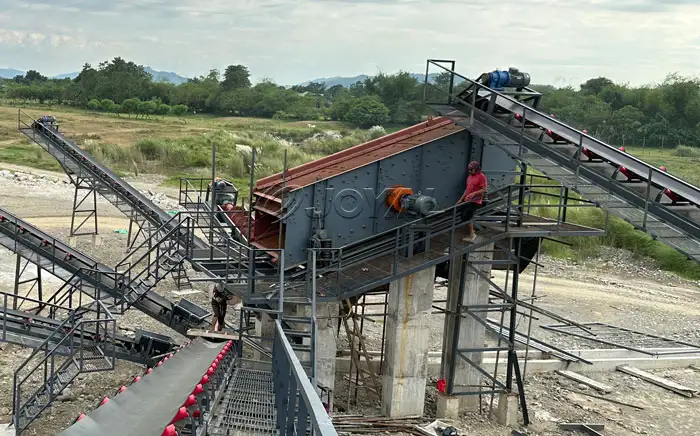

Ore is fed from the bin onto the vibrating screen. Small, good-sized material is screened out as product.

Crush

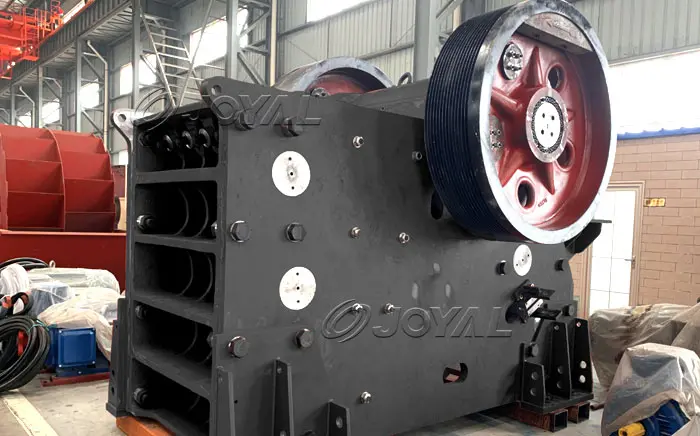

The large material from the screen goes to the Jaw Crusher for the first crushing.

Core Equipment Configuration & Selection Proposal

Copper ore crushing equipment
